Producttypen: 1FO fittingen met ringvormige afdichting
Industriestandaarden: SAE J1453, ISO 8434-3, ISO 11926-2
Verbinding E naar F-stijl:
ORFS MANNELIJKE O-RING / SAE O-RING BOSS S-SERIE
Vorm: recht
ORFS-fittingen Werkdruk: 3215 psi tot 5800 psi, 216 bar tot 400 bar.
Wij bieden ook platte vlak Orfs o ring maten kit en O ring gezicht afdichting ontwerp.
Verschil tussen o-ringafdichtingsring en o-ringafdichtingsring
Fittingen materiaal: messing; Koolstofstaal; Roestvrij staal
Toepassing: Landbouwuitrusting, Automotive Process, Chemische overdracht, Bouwuitrusting, Brandstofoverdracht, Hydraulisch, Productieapparatuur, Marine, Materiaalbehandeling, Mobiele uitrusting, Olieveld, Verpakkingen, Transport

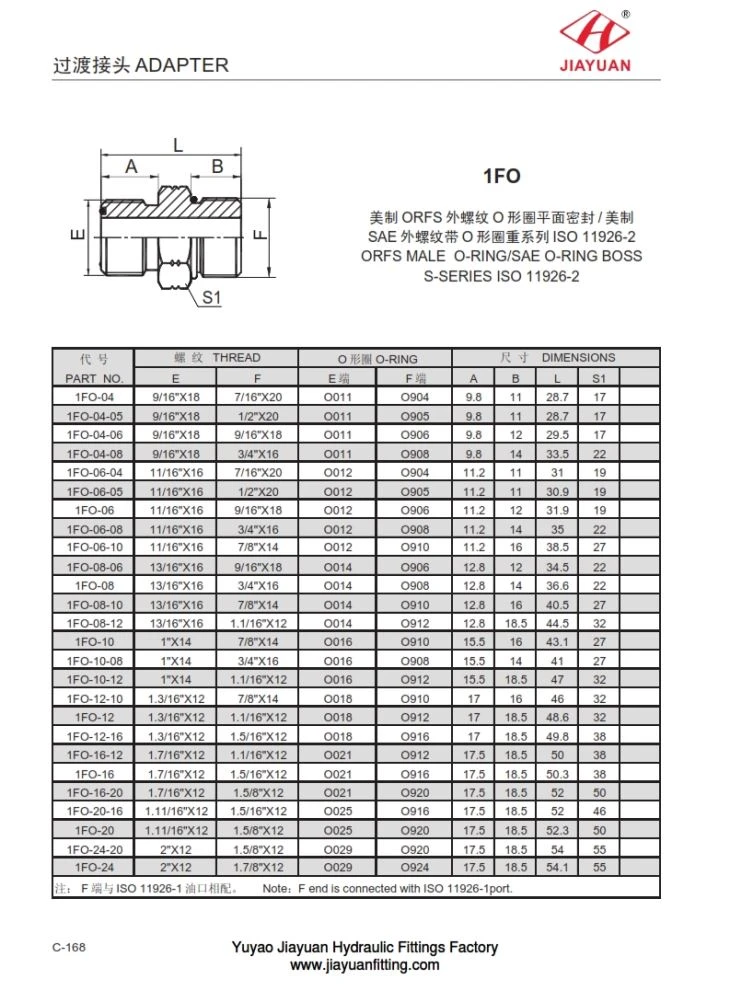

1FO ORFS mannelijke o-ring / sae o-ring boss s-series Maattabel tabel als volgt:
PA RT NEE . | T HR EA D | O O- RING | DIM E N S I O NS | ||||||
E | F | E | F | EEN | B | L | S 1 | ||
1 FO- 04 | 9/16 " X 18 | 7/16 " X 20 | O 011 | O 904 | 9.8 | 11 | 28.7 | 17 | |
1 FO- 04 - 05 | 9/16 " X 18 | 1/2 " X 20 | O 011 | O 905 | 9.8 | 11 | 28.7 | 17 | |
1 FO- 04 - 06 | 9/16 " X 18 | 9/16 " X 18 | O 011 | O 906 | 9.8 | 12 | 29.5 | 17 | |
1 FO- 04 - 08 | 9/16 " X 18 | 3/4 " X 16 | O 011 | O 908 | 9.8 | 14 | 33.5 | 22 | |
1 FO- 06 - 04 | 11/16 " X 16 | 7/16 " X 20 | O 012 | O 904 | 11.2 | 11 | 31 | 19 | |
1 FO- 06 - 05 | 11/16 " X 16 | 1/2 " X 20 | O 012 | O 905 | 11.2 | 11 | 30,9 | 19 | |
1 FO- 06 | 11/16 " X 16 | 9/16 " X 18 | O 012 | O 906 | 11.2 | 12 | 31.9 | 19 | |
1 FO- 06 - 08 | 11/16 " X 16 | 3/4 " X 16 | O 012 | O 908 | 11.2 | 14 | 35 | 22 | |
1 FO- 06 - 10 | 11/16 " X 16 | 7/8 " X 14 | O 012 | O 910 | 11.2 | 16 | 38.5 | 27 | |
1 FO- 08 - 06 | 13/16 " X 16 | 9/16 " X 18 | O 014 | O 906 | 12.8 | 12 | 34.5 | 22 | |
1 FO- 08 | 13/16 " X 16 | 3/4 " X 16 | O 014 | O 908 | 12.8 | 14 | 36.6 | 22 | |
1 FO- 08 - 10 | 13/16 " X 16 | 7/8 " X 14 | O 014 | O 910 | 12.8 | 16 | 40.5 | 27 | |
1 FO- 08 - 12 | 13/16 " X 16 | 1.1 / 16 " X 12 | O 014 | O 912 | 12.8 | 18.5 | 44.5 | 32 | |
1 FO- 10 | 1 " X 14 | 7/8 " X 14 | O 016 | O 910 | 15.5 | 16 | 43.1 | 27 | |
1 FO- 10 - 08 | 1 " X 14 | 3/4 " X 16 | O 016 | O 908 | 15.5 | 14 | 41 | 27 | |
1 FO- 10 - 12 | 1 " X 14 | 1.1 / 16 " X 12 | O 016 | O 912 | 15.5 | 18.5 | 47 | 32 | |
1 FO- 12 - 10 | 1.3 / 16 " X 12 | 7/8 " X 14 | O 018 | O 910 | 17 | 16 | 46 | 32 | |
1 FO- 12 | 1.3 / 16 " X 12 | 1.1 / 16 " X 12 | O 018 | O 912 | 17 | 18.5 | 48.6 | 32 | |
1 FO- 12 - 16 | 1.3 / 16 " X 12 | 1,5 / 16 " X 12 | O 018 | O 916 | 17 | 18.5 | 49.8 | 38 | |
1 FO- 16 - 12 | 1.7 / 16 " X 12 | 1.1 / 16 " X 12 | O 021 | O 912 | 17.5 | 18.5 | 50 | 38 | |
1 FO- 16 | 1.7 / 16 " X 12 | 1,5 / 16 " X 12 | O 021 | O 916 | 17.5 | 18.5 | 50.3 | 38 | |
1 FO- 16 - 20 | 1.7 / 16 " X 12 | 1,5 / 8 " X 12 | O 021 | O 920 | 17.5 | 18.5 | 52 | 50 | |
1 FO- 20 - 16 | 1.11 / 16 " X 12 | 1,5 / 16 " X 12 | O 025 | O 916 | 17.5 | 18.5 | 52 | 46 | |
1 FO- 20 | 1.11 / 16 " X 12 | 1,5 / 8 " X 12 | O 025 | O 920 | 17.5 | 18.5 | 52.3 | 50 | |
1 FO- 24 - 20 | 2 " X 12 | 1,5 / 8 " X 12 | O 029 | O 920 | 17.5 | 18.5 | 54 | 55 | |
1 FO- 24 | 2 " X 12 | 1.7 / 8 " X 12 | O 029 | O 924 | 17.5 | 18.5 | 54.1 | 55 | |
F I S O 11926 - 1 Opmerking F end i s c onne c ted w i th I S O 11926 - 1po r t. | |||||||||
