Draaibare BSP mannelijke BSP ORR-fitting E45
Soorten BSPP-schroefdraad 60 graden conusfittingen: met of zonder O-ring, mannelijke of swviel vrouwelijke connector.
Standaard van BSPP fittingencatalogus is gebaseerd op ISO 8434-6 en BS 5200.
De schroefdraden voor de 60 graden conusverbindingen zijn BSPP conform aan ISO 228-1.
Metalen buisverbindingen voor hydraulische vloeistofkracht en algemeen gebruik.
Jiayuan biedt ook roestvrijstalen BSP-fittingen, messing bsp-buisfittingen, bsp-slangfittingen etc.

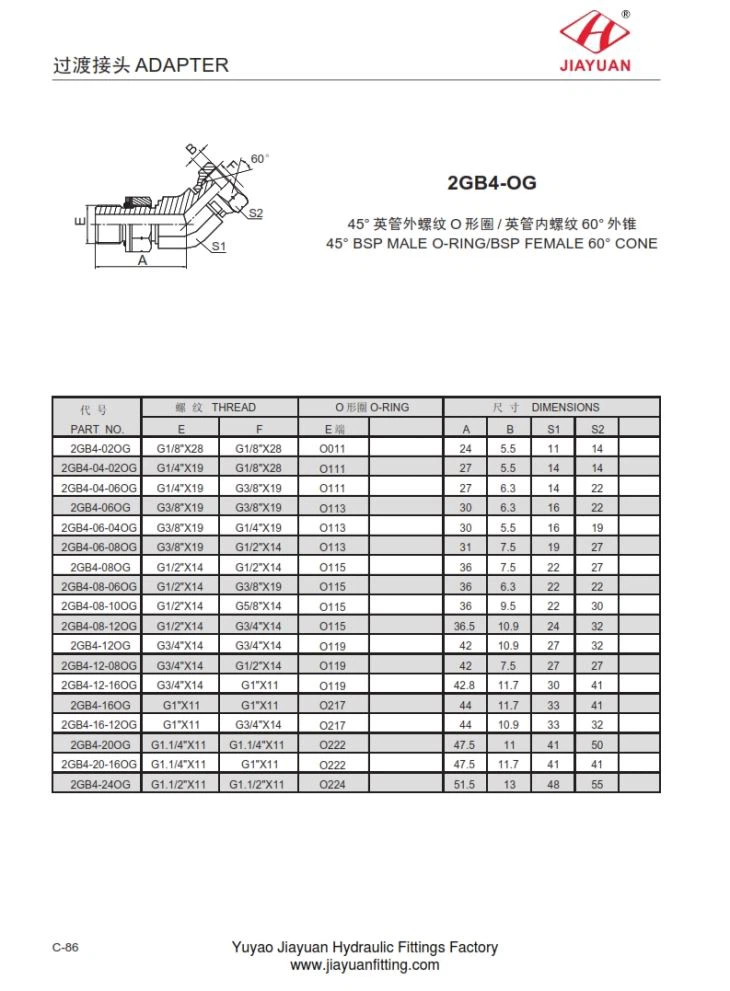

2GB4-OG 45 ° BSP MANNELIJKE O-RING / BSP VROUWELIJKE 60 ° CONE fitting connector afmetingen als volgt:
PAR T NEE | THREA D | O-RIN G | AFMETING S | ||||||
E |
F |
E |
EEN |
B |
S 1 |
S 2 | |||
2GB4-02O G | G1 / 8 "X2 8 | G1 / 8 "X2 8 | O 011 | 2 4 | 5. 5 | 1 1 | 1 4 | ||
2GB4-04-02O G | G1 / 4 "X1 9 | G1 / 8 "X2 8 | O 111 | 2 7 | 5. 5 | 1 4 | 1 4 | ||
2GB4-04-06O G | G1 / 4 "X1 9 | G3 / 8 "X1 9 | O 111 | 2 7 | 6. 3 | 1 4 | 2 2 | ||
2GB4-06O G | G3 / 8 "X1 9 | G3 / 8 "X1 9 | O 113 | 3 0 | 6. 3 | 1 6 | 2 2 | ||
2GB4-06-04O G | G3 / 8 "X1 9 | G1 / 4 "X1 9 | O 113 | 3 0 | 5. 5 | 1 6 | 1 9 | ||
2GB4-06-08O G | G3 / 8 "X1 9 | G1 / 2 "X1 4 | O 113 | 3 1 | 7. 5 | 1 9 | 2 7 | ||
2GB4-08O G | G1 / 2 "X1 4 | G1 / 2 "X1 4 | O 115 | 3 6 | 7. 5 | 2 2 | 2 7 | ||
2GB4-08-06O G | G1 / 2 "X1 4 | G3 / 8 "X1 9 | O 115 | 3 6 | 6. 3 | 2 2 | 2 2 | ||
2GB4-08-10O G | G1 / 2 "X1 4 | G5 / 8 "X1 4 | O 115 | 3 6 | 9. 5 | 2 2 | 3 0 | ||
2GB4-08-12O G | G1 / 2 "X1 4 | G3 / 4 "X1 4 | O 115 | 36. 5 | 10. 9 | 2 4 | 3 2 | ||
2GB4-12O G | G3 / 4 "X1 4 | G3 / 4 "X1 4 | O 119 | 4 2 | 10. 9 | 2 7 | 3 2 | ||
2GB4-12-08O G | G3 / 4 "X1 4 | G1 / 2 "X1 4 | O 119 | 4 2 | 7. 5 | 2 7 | 2 7 | ||
2GB4-12-16O G | G3 / 4 "X1 4 | G1 "X1 1 | O 119 | 42. 8 | 11. 7 | 3 0 | 4 1 | ||
2GB4-16O G | G1 "X1 1 | G1 "X1 1 | O 217 | 4 4 | 11. 7 | 3 3 | 4 1 | ||
2GB4-16-12O G | G1 "X1 1 | G3 / 4 "X1 4 | O 217 | 4 4 | 10. 9 | 3 3 | 3 2 | ||
2GB4-20O G | G1.1 / 4 "X1 1 | G1.1 / 4 "X1 1 | O 222 | 47. 5 | 1 1 | 4 1 | 5 0 | ||
2GB4-20-16O G | G1.1 / 4 "X1 1 | G1 "X1 1 | O 222 | 47. 5 | 11. 7 | 4 1 | 4 1 | ||
2GB4-24O G | G1.1 / 2 "X1 1 | G1.1 / 2 "X1 1 | O 224 | 51. 5 | 1 3 | 4 8 | 5 5 | ||
